Arisaka Defense Offset Scout Mount M-Lok

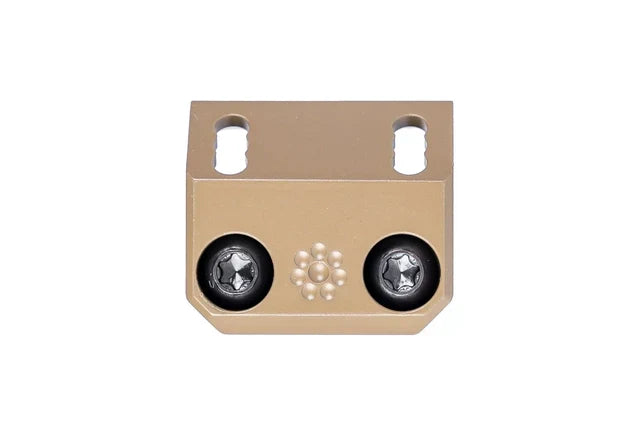

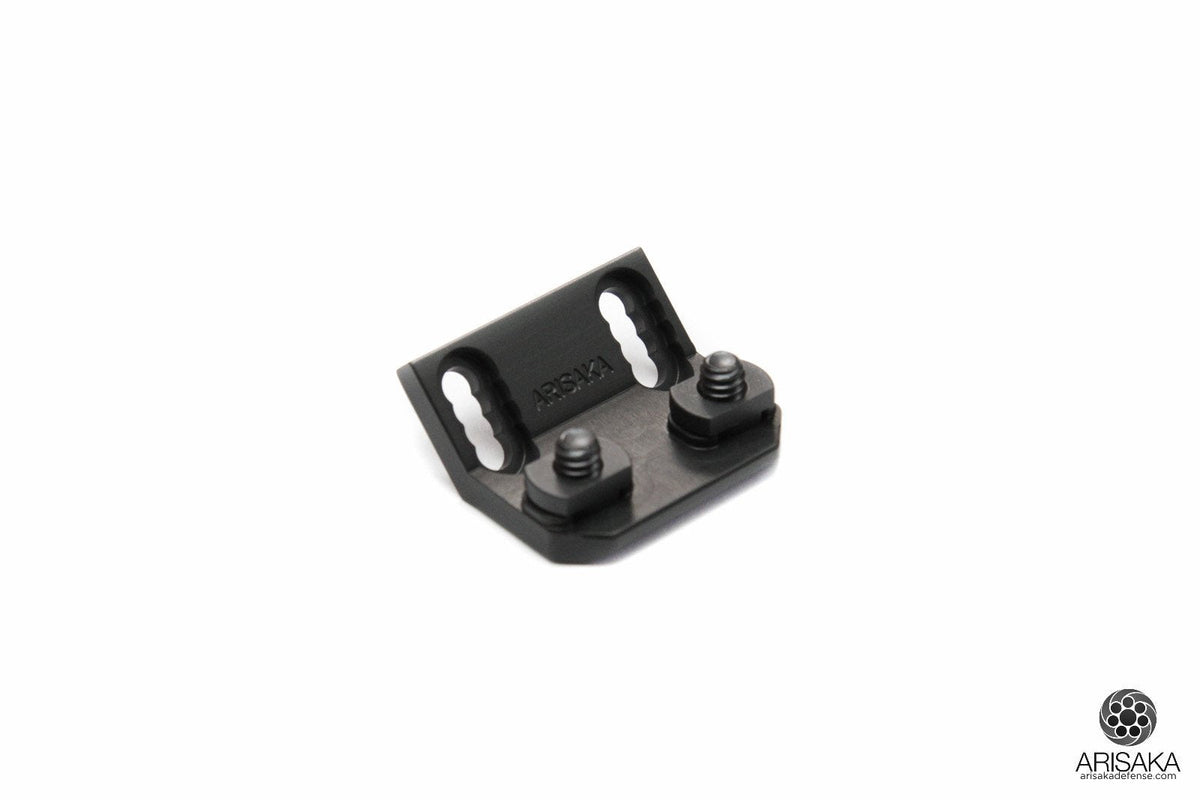

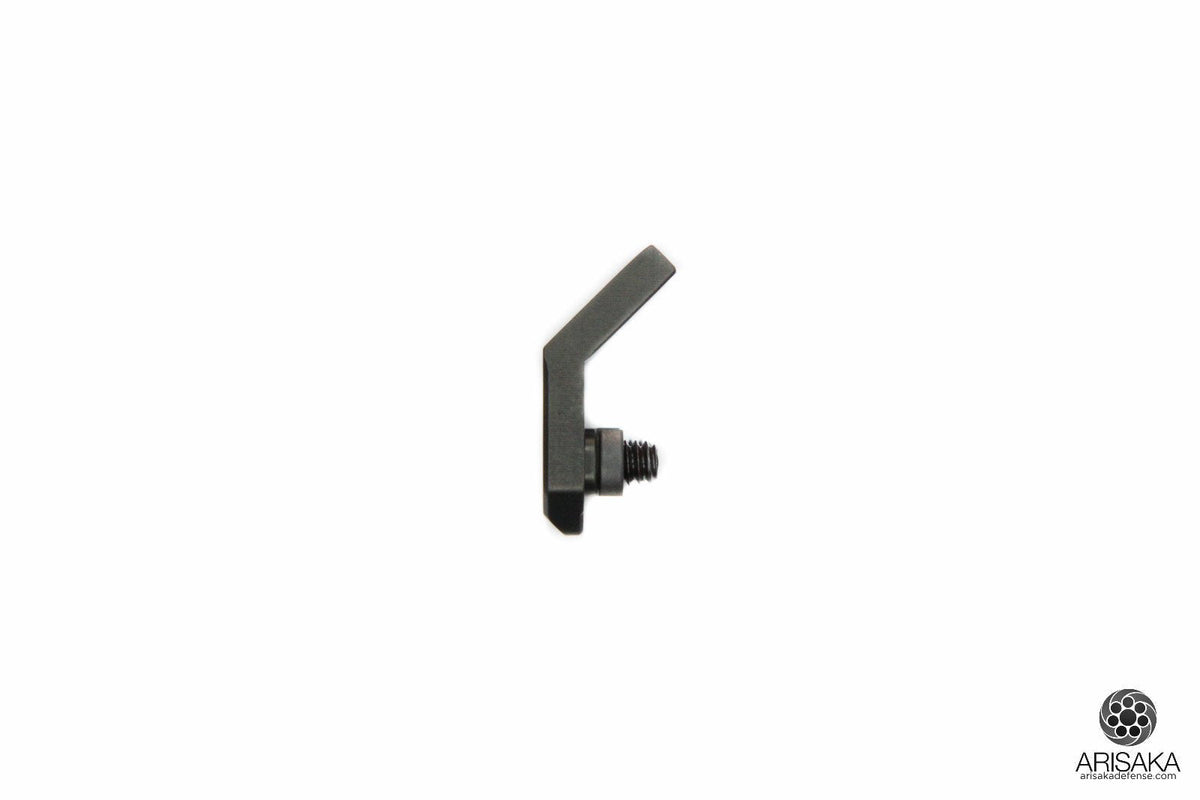

The Patent Pending Arisaka Offset Scout Mount is designed specifically for lights that utilize the Scout-style mounting platform. It replaces the stock Picatinny rail adapter with a low profile mount for M-Lok handguards. The Offset Scout Mount is very low profile at less than 0.20" thick.

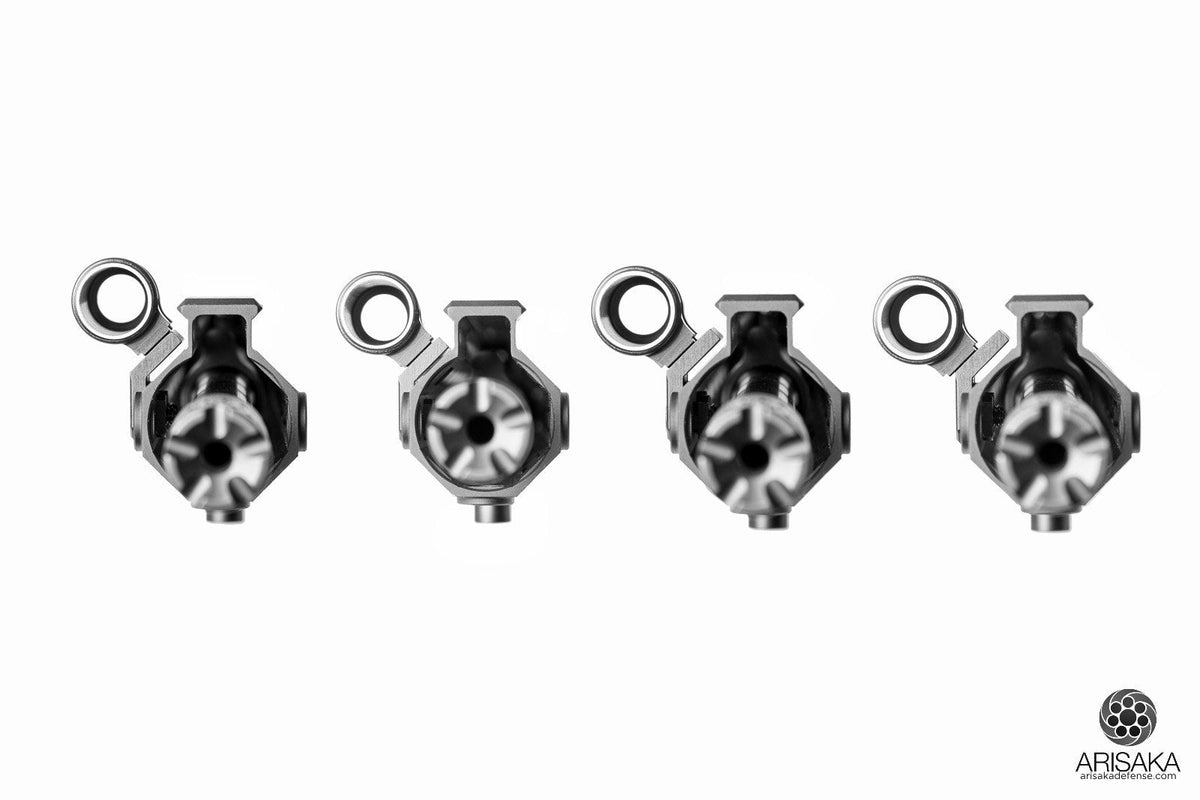

When used on the side mounting surfaces of M-Lok handguards, the Offset Scout Mount places the light at a 45 degree angle and tucks it in closer to the rail system. Oriented upwards, the light is located at approximately the 1:30 or 10:30 clock positions. Oriented downwards, the light is located at approximately the 4:30 or 6:30 clock positions.

The Offset Scout Mount also provides three lateral mounting positions for the light body, which allows the user to position the light closer or farther away from the top rail, front sights, or other accessories. Three positions are provided, spanning approximately 0.240". When used with the Arisaka 300 Series Light Body or 600 Series Light Body, even more clearance can be gained for larger front sights.

Compatible with Modlite 18350 and 18650 bodies/lights, Surefire M300A, M300B, M300C, M600B, M600C, M600P, M600U, M600V, M600DF, Streamlight Protac Rail Mount 1, 2 and HL-X, and Arisaka 300 and 600 Series.

M620 series lights can also be used with the Offset Scout Mount with the addition of the Arisaka Offset M620 Adapter.

Length: 1.265"

Weight: 0.4 oz

The mount is CNC machined from 6061-T6 aluminum and MIL-A-8625 Type III hard coat anodized. Includes necessary screws to attach light body to mount. Requires a 5/64" and 1/8" Allen wrench for installation (not included). Made in the USA.

M-Lok Installation Guide
